المواد:الفولاذ المقاوم للصدأ
SAE J1508:المعايير
الأنواع:أمريكا، ألمانيا، البريطانيون
Material: stainless steel
Standard: SAE J1508
Type: American, Germany, British
المواصفات للمشبك للأنابيب اللينة
1. SAE :المعايير
2.المواد:الفولاذ المقاوم للصدأ أو الزنك مطلي الصلب
3. الأنواع:أمريكا، ألمانيا، البريطانيون
4. 8mm-12.7mm :عرض الفرقة
5. 0.6-0.8mm:السماكة
6. 6mm-311mm :لقط المدى
7. السطح:مصقول أو الزنك-- مطلي
8.حزمة: أكياس بلاستيكية - مربع الداخلية - الكرتون الخارجي أو حسب طلب العميل
Specification of Hose Clamp:
1. Standard: SAE
2. Material: stainless steel or Zinc Plated Steel
3. Type: American, Germany, British clamp
4. Width of the band: 8mm-12.7mm
5. Thickness: 0.6-0.8mm
6. Clamping Range: 6mm-311mm
7. Surface: Polished or Zinc-plated
8. Package: Plastic bags - inner box - outer carton or as client's request
الأمريكية نوع خرطوم المشبك
w1: الفرقة، الإسكان والمسمار، جميع الزنك مطلي الكربون الصلب
w2: الفرقة والإسكان مع 300 سلسلة من الفولاذ الصلب، المسمار هو الزنك مطلي الصلب
w4: جميع أجزاء هي ايسي 300 سلسلة الفولاذ الصلب

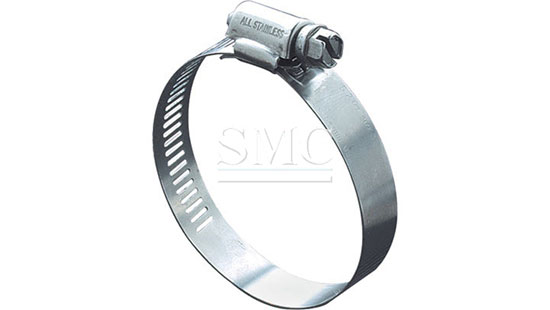

American Type Hose Clamp
W1: Band, housing & screw, all zinc plated carbon steel
W2: Band and housing with 300 series of stainless steel, screw is zinc plated steel
W4: All parts are AISI 300 series Stainless Steel
ألمانيا نوع خرطوم المشبك
9mm & 12mm :عرض الفرقة
0.6mm~0.8mm :سمك الفرقة
w1: جميع أجزاء الصلب الزنك مطلي الصلب.
w2: الفرقة و خرطوم الفولاذ المقاوم للصدأ، المسمار هو الزنك مطلي الصلب.
W3: المسمار هو 410، والبعض الآخر 430ss / 200ss أو أنواع أخرى من الفولاذ المقاوم للصدأ
w4: جميع أجزاء هي الفولاذ المقاوم للصدأ 301/304.
W5: جميع الفولاذ المقاوم للصدأ 316
Germany Type Hose Clamp
Band width: 9mm & 12mm
Band thickness: 0.6mm~0.8mm
W1: All parts steel are zinc plated steel.
W2: Band & hosing are stainless steel, the screw is zinc plated steel.
W3: The screw is 410, others are 430ss/200ss or other kinds of stainless steel
W4: All parts are 301/304 stainless steel.
W5: All 316 stainless steel
البريطانية نوع خرطوم المشبك
w1: جميع أجزاء الصلب الزنك مطلي الصلب.
w2: الفرقة و خرطوم الفولاذ المقاوم للصدأ، المسمار هو الزنك مطلي الصلب.
W3: المسمار هو 410، والبعض الآخر 430ss / 200ss أو أنواع أخرى من الفولاذ المقاوم للصدأ
w4: جميع أجزاء هي الفولاذ المقاوم للصدأ 301/304.
British Type Hose Clamp
W1: All parts steel are zinc plated steel.
W2: Band & hosing are stainless steel, the screw is zinc plated steel.
W3: The screw is 410, others are 430ss/200ss or other kinds of stainless steel
W4: All parts are 301/304 stainless steel.
حزمة من الفولاذ المقاوم للصدأ الأنابيب المناسب:
هي معبأة المنتجات الفولاذ المقاوم للصدأ الأنابيب المناسب وفقا للمعايير الدولية واللوائح وكذلك لطلبات العملاء. ونحن نولي عناية كبيرة لتجنب أي ضرر أثناء التخزين أو النقل من الفولاذ المقاوم للصدأ الشفاه.
Package of Stainless Steel Pipe Fitting:
The stainless steel pipe fitting products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.
تطبيق خرطوم المشبك:
عادة ما تقتصر المشابك خرطوم على الضغوط المعتدلة، مثل تلك الموجودة في تطبيقات السيارات والمنزل. في الضغوط العالية، وخاصة مع أحجام خرطوم كبيرة، يجب أن يكون المشبك غير عملي لتكون قادرة على تحمل القوى توسيعه دون السماح للخرطوم للانزلاق قبالة شارب أو تسرب لتشكيل. لهذه التطبيقات الضغط العالي، والتجهيزات ضغط، سميكة تجعيد التجهيزات، أو تصاميم أخرى تستخدم عادة. تستخدم في السيارات، الجرارات، السفن، البنزين، المحرك، كل نوع من الجهاز الميكانيكي للنفط والغاز، موصل خرطوم هيدروليكي
Application of Hose Clamp:
Hose clamps are typically limited to moderate pressures, such as those found in automotive and home applications. At high pressures, especially with large hose sizes, the clamp would have to be unwieldy to be able to withstand the forces expanding it without allowing the hose to slide off the barb or a leak to form. For these high pressure applications, compression fittings, thick crimp fittings, or other designs are normally used. Used in automobiles, tractors, ships, gasoline, engine, each kind of mechanical device for oil, gas, hydraulic hose connector.
